Connecting Users to Workloads on Azure VMware Solution with VMware SD-WAN

Organizations are making strategic investments, migrating their workloads from the data center to “always-on” cloud infrastructure delivered by Microsoft Azure VMware Solution. Azure VMware Solution enables enterprises to set up private clouds in Azure. This solution helps customers keep their existing VMware investments, skills, and tools while taking advantage of scale, automation, and agility to provision VMware workloads on global Azure infrastructure.

Organizations are also dealing with a distributed workforce that extends from campus headquarters to home offices. Users expect a consistent experience from any location when they connect to applications in the Azure cloud or in the data center. Many organizations rely on legacy WAN architectures for connectivity between users, the data center, and Azure VMware Solution. These networks are unreliable, costly, and complex to manage, leading to poor user experience. Many employees working from home rely on the best effort broadband Internet to access applications, and productivity suffers when users can’t reach their applications. These networks can become a major bottleneck in providing the best user experience when migrating workloads and adopting Azure VMware Solution.

Removing barriers to cloud migration

VMware Software-Defined Wide Area Network (SD-WAN) solution delivers secure, reliable, and efficient access between users, Azure VMware Solution in the Azure cloud and on-premises data centers. Enterprise IT can now accelerate migration of workloads from data centers to Azure VMware Solution and offer a consistent experience to users no matter their location. Also, the solution offers multiple choices when connecting end-users and the data center to their Azure VMware Solution instance. For example, apart from ensuring reliable access for users, VMware SD-WAN provides flexible solutions to carry HCX overlay traffic between on-premises data centers and Azure Cloud.

VMware SD-WAN solutions deliver operational simplicity and dynamic remediation capabilities when the network experiences packet loss, latency, and jitter. The solution prioritizes business critical application traffic, thus providing a rich user experience. VMware SD-WAN solution provides connectivity to the nearest point of presence to the Azure VMware Solution instance by leveraging the Azure Virtual WAN hub location, with the objective of providing a low-latency optimal path between the end-users and Azure VMware Solution to avoid unwanted traffic hair-pinning.

VMware SD-WAN has been integrated with the Native Azure Virtual WAN Hub (vWAN Hub) to provide a secure and reliable connection for organizations as they need to access their workloads and applications that now reside in Azure VMware Solution. Azure Virtual WAN Hub provides connectivity between VMware SD-WAN, Azure VMware Solution, and data centers.

DiagramDescription automatically generated

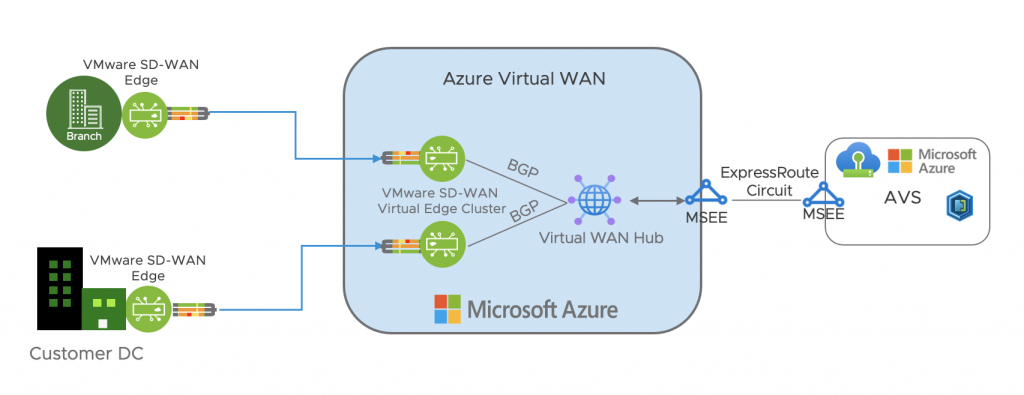

Figure 1: Remote workers and branch sites connecting to Azure VMware Solution using Azure Virtual WAN Hub.

“By leveraging the joint solution from VMware SD-WAN with Virtual WAN and Microsoft Azure VMware Solution, organizations can offer a consistent and rich user experience for the distributed workforce while accelerating their pace of migrating workloads to the Azure Cloud.”

Dr. Reshmi Yandapalli, Principal Program Manager at Microsoft Corp.

VMware SD-WAN is also integrated with Azure Route Servers. Azure Route Servers create BGP peering with the VMware SD-WAN Edge. This is possible by deploying virtual edge or virtual edge clusters and Router Servers in Azure Virtual Network (VNET). This option takes away the need to manually configure and maintain route tables.

DiagramDescription automatically generated
Figure 2: Connecting users and data center workloads to Azure VMware using Route Server with VMware SD-WAN.

When using the VMware SD-WAN virtual edge that can be deployed from the Azure Marketplace, customers benefit from end-to-end SD-WAN, simplified network design, and reduced complexity.

VMware SD-WAN and Azure VMware Solution: A force multiplier

This combined solution from VMware and Microsoft enables organizations — across all industries and around the globe — to gain simple-to-deploy, secure, high-performance connectivity from branch office locations to Microsoft Azure as an overlay without having to redesign their networks. This simple, automated deployment method allows customers to scale across thousands of branches easily and reach their goals of migrating to the Azure cloud. VMware SD-WAN enables enterprises to support the migration to Microsoft SaaS offerings, including Bing, Dynamics 365, Office 365, and Xbox, and to use Azure VMware Solution to host their own applications with high performance and reliability.

Learn more

  • For a deeper dive into VMware SD-WAN, click here.
  • To explore the Azure VMware Solution, click here.
  • To gain additional insights on the VMware Microsoft partnership, click here.
